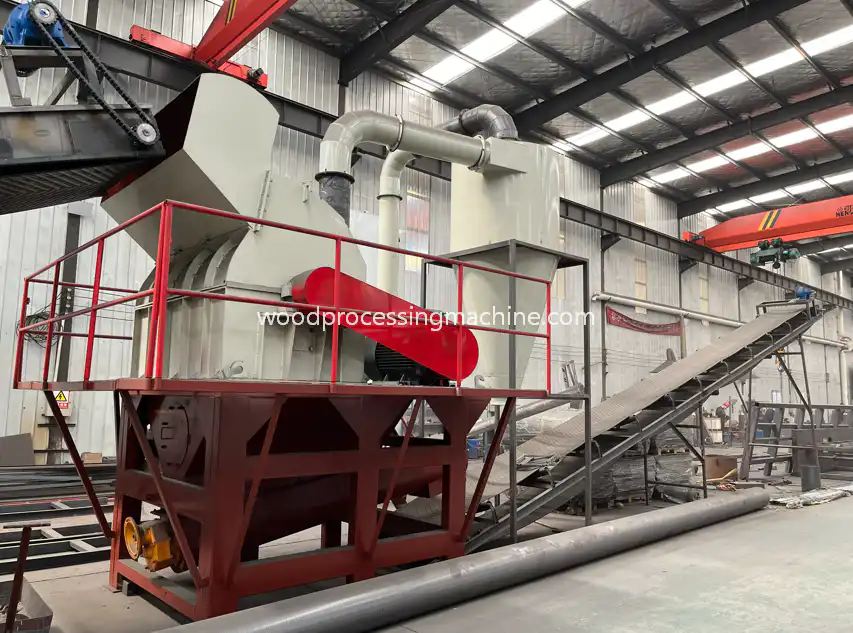

Hammer Mill Crushes semi-finished materials including charcoal briquettes, straw and wood chips into 5–10 mm sawdust, with a processing capacity of 0.6–5 tons per hour.Driven by either diesel engines or electric motors, the pulverizer supports optional accessories such as cyclone separators, base frames, mobile tires and operation platforms. Customized configurations are available to satisfy diverse production requirements.
Processable Raw Materials
hammer mill can crush a wide range of raw materials, categorized as follows:
- Wood materials: Logs, branches, lumber, wood blocks, wood chips, bark, miscellaneous wood scraps, etc.
- Agricultural waste: Straw, corn cobs, rice straw, peanut shells, cotton stalks, soybean stalks, grass, etc.
- Biomass materials: Bamboo, palm fiber, bagasse, coconut shells, nut shells, etc. Industrial waste:
- Construction formwork, fiberboards, wooden packing cases, waste wooden furniture, bricks, cement residues, etc.
- Other materials: Cardboard, paper, waste books, fibers, etc.
raw material
finished product
Applicable Fields
The crushed finished materials can be further processed and applied in the following fields:

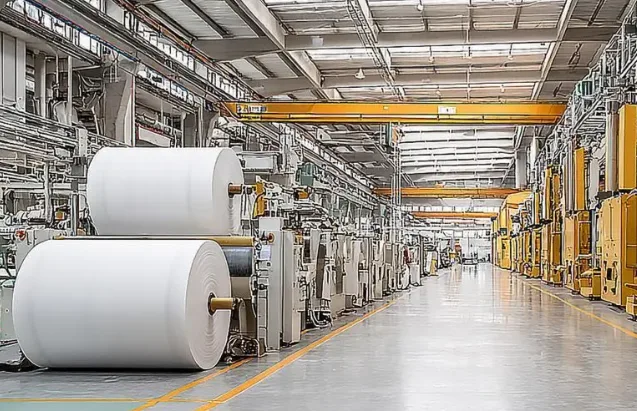

- Paper mills:The crushed sawdust serves as raw papermaking material to generate economic benefits.
- Charcoal production lines:With abundant wood feedstock, the sawdust is a widely adopted raw material for charcoal manufacturing.
- Agricultural planting:Sawdust can be used as organic fertilizer in farming. It supplements soil nutrients, improves soil structure and boosts soil aeration.
- Wood processing plants:As an essential raw material for wood products, crushed wood materials are extensively utilized in all types of woodworking factories.
Machine structure of hammer crusher
The machine’s composition is mainly composed of the power system and working chamber. The core is the internal structure. The internal structure is composed of hammer blade and screen.
- The hammer blade is responsible for pounding various materials to achieve the purpose of crushing.
- The screen is to determine the coarseness of the raw material.

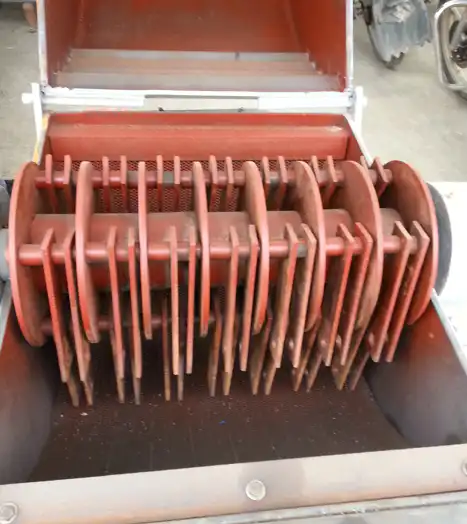

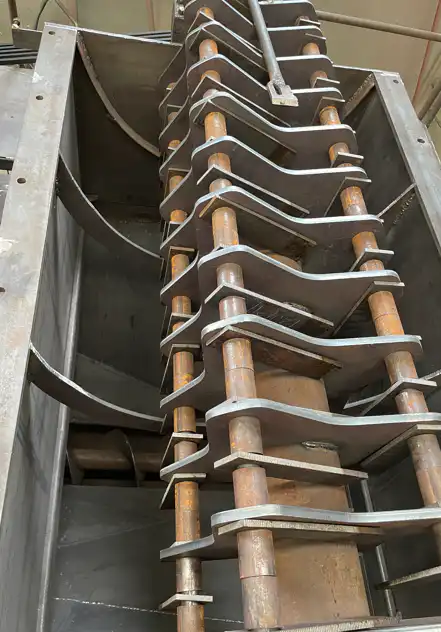

Hammer piece
Hammer

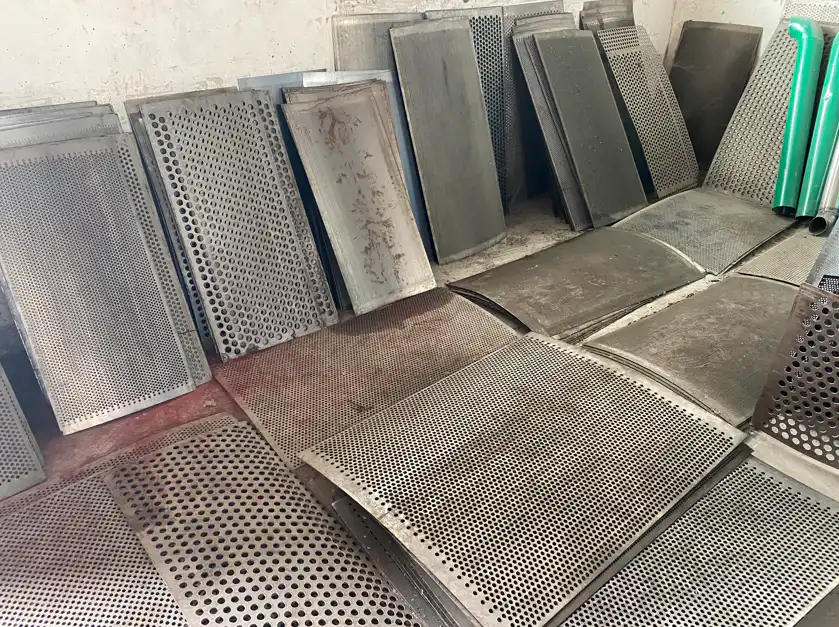

Sieve
How Does a Hammer Mill Operate ?
A hammer mill crushes materials through the striking, impacting, shearing and grinding force generated by high-speed rotating hammers.
Raw materials are fed into the mill from the top inlet and repeatedly processed by fast-spinning hammer blades.
A screen mesh is fitted inside the machine. Fine particles smaller than the mesh aperture pass through and exit the unit. Oversized fragments remain inside the crushing chamber for repeated hammer impact until they meet the required size and discharge through the screen.
Model parameters of hammer crusher
| Model | SL-HM60 | SL-HM70 | SL-HM80 | SL-HM90 | SL-HM1000 | SL-HM1300 |
| Power | 22kW | 30kW | 37kW | 55kW | 75kW | 90kW |
| Hammers | 30pcs | 40pcs | 50pcs | 50pcs | 105pcs | 105pcs |
| Fan | / | / | 7.5kW | 7.5kW | 11kW | 22kW |
| Dust remover | 5pcs | 5pcs | 5pcs | 5pcs | 14pcs | 14pcs |
| Cyclone diameter | 1m | 1m | 1m | 1m | 1m | 1m |
| Capacity | 0.6-0.8t/h | 1-1.2t/h | 1.2-1.5t/h | 1.5-3t/h | 3-4t/h | 4-5t/h |
Type of hammer crusher
Through persistent R&D optimization and technical innovation, we offer a comprehensive range of hammer mills to accommodate customers’ diverse production requirements.

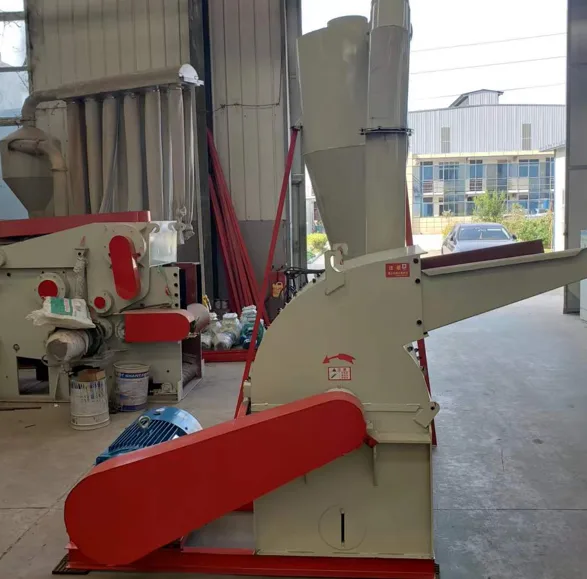

Electric hammer crusher

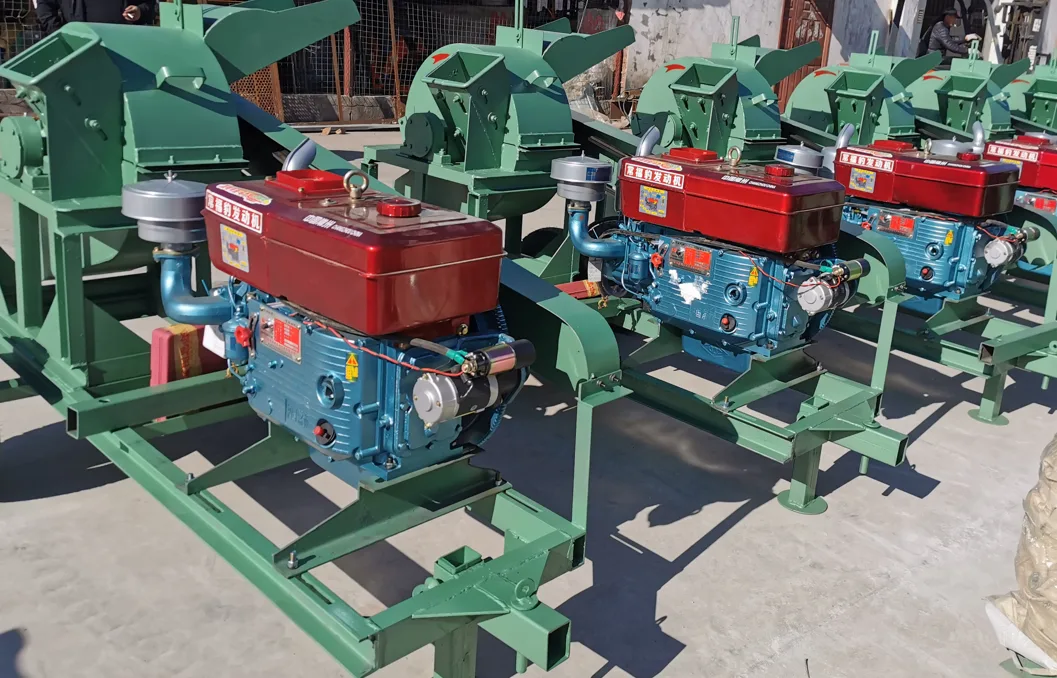

Diesel-engined hammer mill
Contact us for customized solutions
We are a professional manufacturer and supplier of woodworking machinery, offering a full line of wood processing equipment including wood crushers, wood shaving machines, log debarkers and comprehensive shredders.
If you require efficient wood processing equipment, feel free to get in touch with us. Our seasoned sales specialists will provide tailored machinery recommendations based on your specific production demands.
